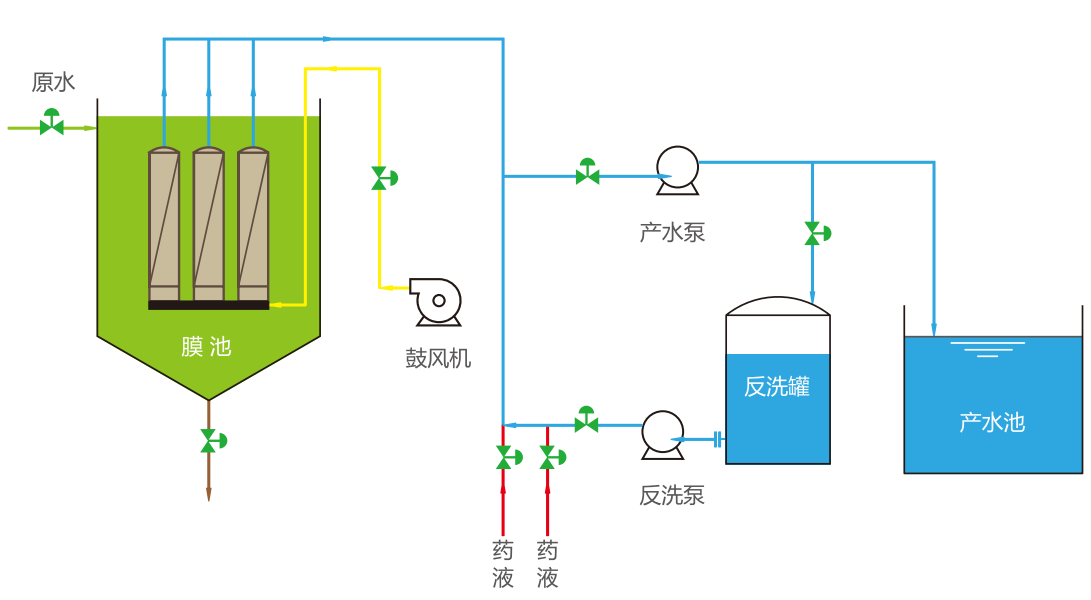

Submerged membrane filtration (SMF) technology is a new type of membrane technology. It is a new type of membrane filtration process in which ultra-low-pressure hollow-fiber membrane technology and continuous membrane filtration technology are combined together. It uses open-ended hollow fiber membrane elements, which put the membrane directly into the membrane tank that is full of water, then go through the vacuum suction pump, use atmospheric pressure, so that the surface water can go through the membrane, get out from the inside, and the purpose of purification is achieved.
The daily treatment capacity of the single membrane tank can reach more than 10,000 tons. The combination of more than one membrane and backwash operation can be adapted to different water conditions and scale, so that the control system of water treatment can be greatly simplified, and the reliability is greatly improved. It is especially suited for large-scale water treatment work.The technology can help hollow fiber membrane achieve on-line cleaning and online chemical enhancement cleaning, the elimination of membrane fouling and an effective restoration of membrane flux.The technology can achieve integral online test for the membrane. No matter when you have any problem with membrane, it can be judged quickly and accurately, and can be easily isolated and replace the membrane.
Submerged membrane filtration (SMF) technology is a research result from MOTIMO after many years’s research of ultra-low-pressure membrane filter technology, development and the accumulated experience of practical application.It is an international advanced technology after the birth of CMF, MBR, TWF. Tianjin MOTIMO Membrane Technology CO.,Ltd. has the integral intellectual property rights on technique.
1.PVDF has the capability of high anti-pollution ,anti-oxidation and fouling resistance with high flux and a stable effluent, it is easy to wash and has a long service life;
2.Equipment is easy to control and the system operates automatically that can also be controlled remotely;
3.Unique online air-water backwashing methology, excellent recovery rate of flux, lower self-expense water cost;
4.Compact structure, suitable for the large-scale water treatment project;
5.Apply specifically to transformation or extension, the original filter tank with membrane method, enhancing the processing scale and water quality;
6.Generate Product water under negative suction pressure, operate with ultra-low pressure, saving electrical energy;
7.Commonly industrial dosing device can be used to wash the system, saving O&Mcosts;
8.high water quality, high water recovery rate, effective water-saving
Project |
Raw water |
Application |
municipal sewage treatment and re-use |
STP second class producing water |
Landscape, irrigation, industrial production, toilet flushing and vehicles cleaning water |
Deep treatment and re-use of Industrial waste water |
STP second class producing water Circulating and cooling industrial water |
Make industry process water process water cooling circulating water etc. |
Industrial water treatment |
Ground water or surface water |
Make industry process water |
RO-pretreatment |
Sea water and other water needing desalination |
Sea water desalination, pure water, hyperpure water, desalted water for industrial process etc. |
Supply processing |
Ground water or surface water |
Municipal water supply treatment |
Residential water and commerce water treatment |
Tap water |
Drinking water purification |

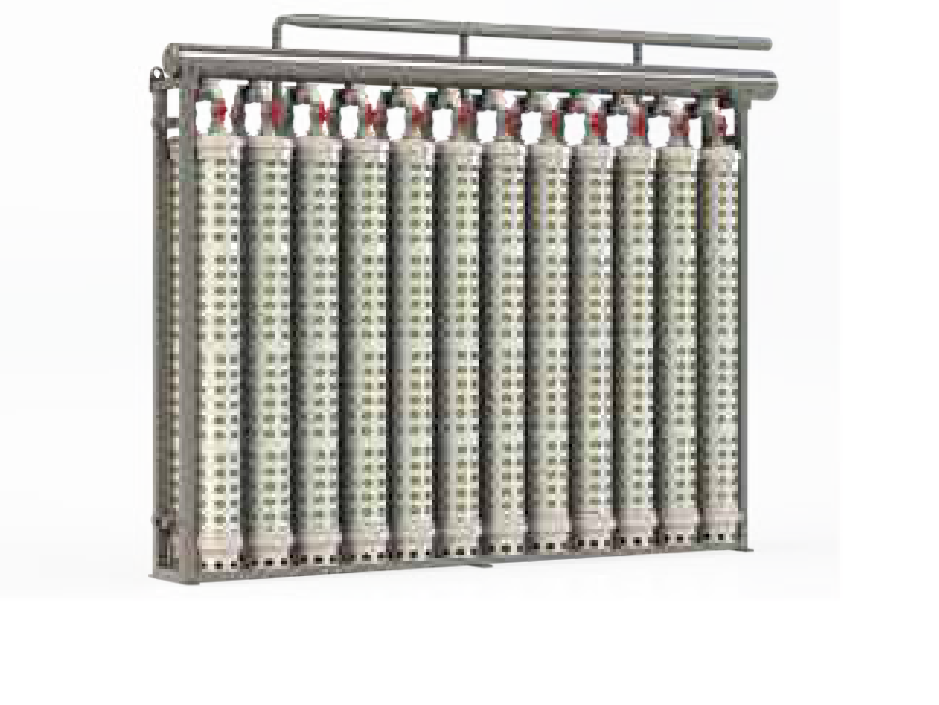

Model of membrane component |
SMF-635 |
ST-635 |
|
Component Parament |
|
NIPS |
C-TIPS |
Effective membrance area (m2) |
35 |
||
Maximum diameter hole(um) |
0.03 |
||
Component size |
Total length ×total width (mm) |
1800×φ160 |
|
Interface size |
Articulated port(DN) |
32 |
|
Connection type |
M65×3 |
||
Component weight |
Moist component (kg) |
16 |
|
Operating |
Filter tupe |
Suction full filtration |
|
Maximum transmembrane differential pressure(KPa) |
50 |
80 |
|
Applicable temperature range (℃) |
1-40 |
||
Common pH range |
6-8 |
||
Tolerance pH range |
1-10 |
||
20℃ design flux(L/m2*h) |
35-43 |
||
Steam rage (Nm3/h) |
3-5 |
10 |
|
Backwash flux (m3/h) |
1.8~2.0 |
